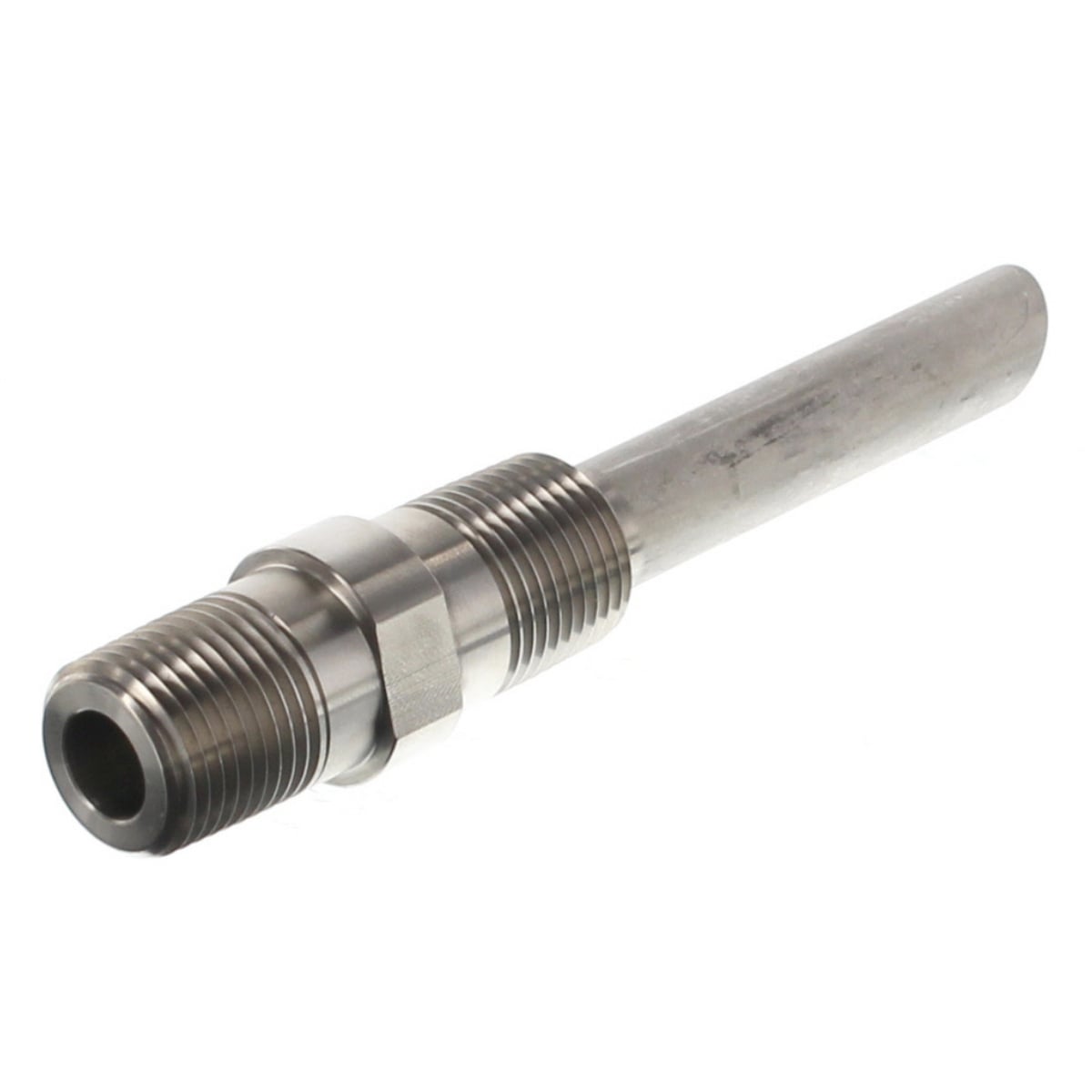

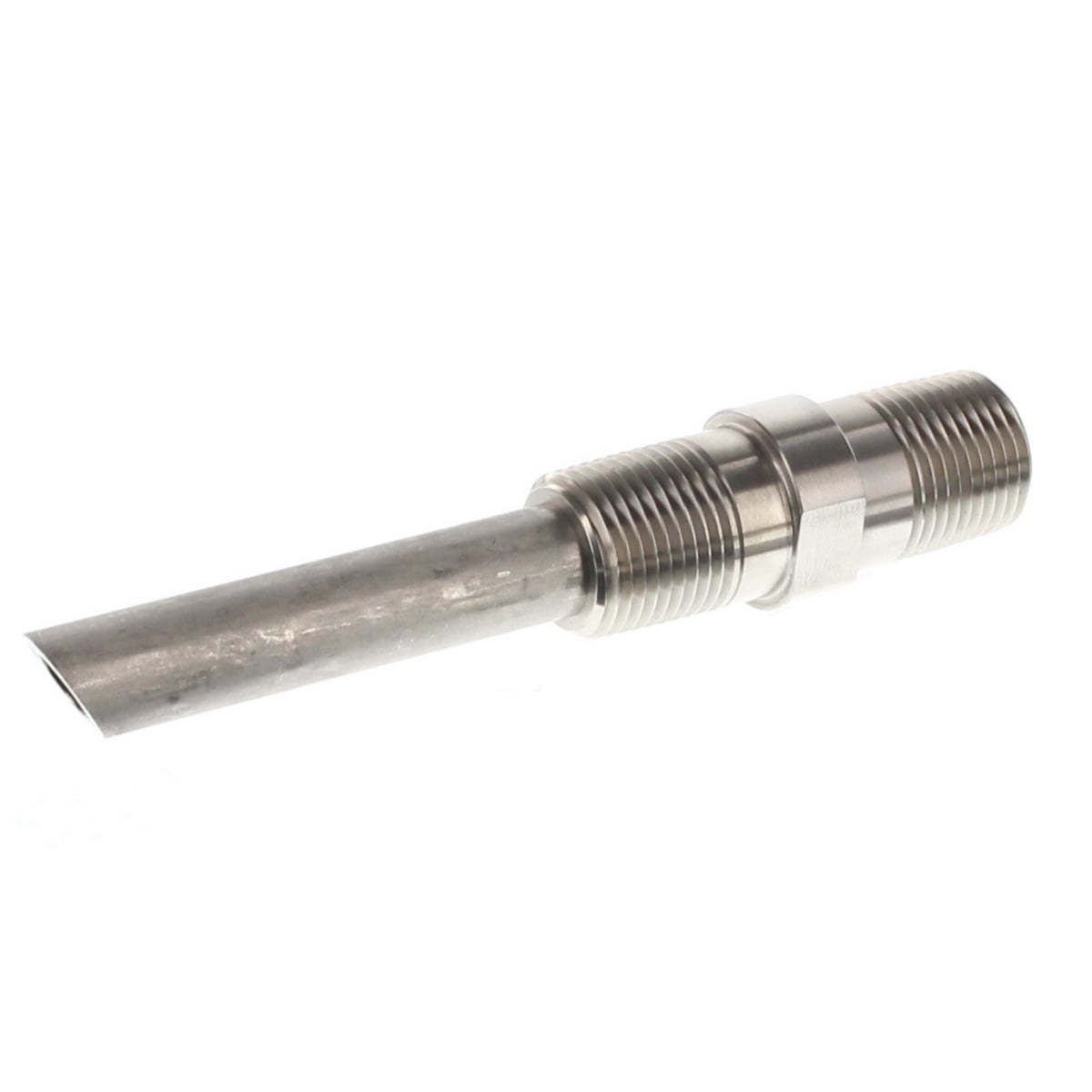

1/2 inch Stainless Steel Injection Quill

What are Chemworld Injection Quills?
Chemworld Injection Quills are high-pressure Injection Quills are used to inject chemicals pumped by metering pumps into the turbulent flow zone of high pressure water or steam lines. They are perfect for injecting your boiler chemicals and amines to the steam header.

What are the features of the injection quill?
It may be used to 3,000 psi and comes with a spring loaded check valve option. These are available in 316SS on this page. For other materials, please contact us directly..

What are the length of these quills?
Use the standard 2 3/4 inch standard Chemworld Injection Quill for lines smaller than 4" diameter, trim quill so chemical is released near center of line. Use as is for lines over 4" diameter. Install with a Telltale V-notch facing upstream so flow strikes an angled face at the end of the quill for the most rapid dispersal of the injected chemical.

For maintenance ease, installation of an isolation valve, rated above line operating pressure, immediately behind the quill is recommended.
