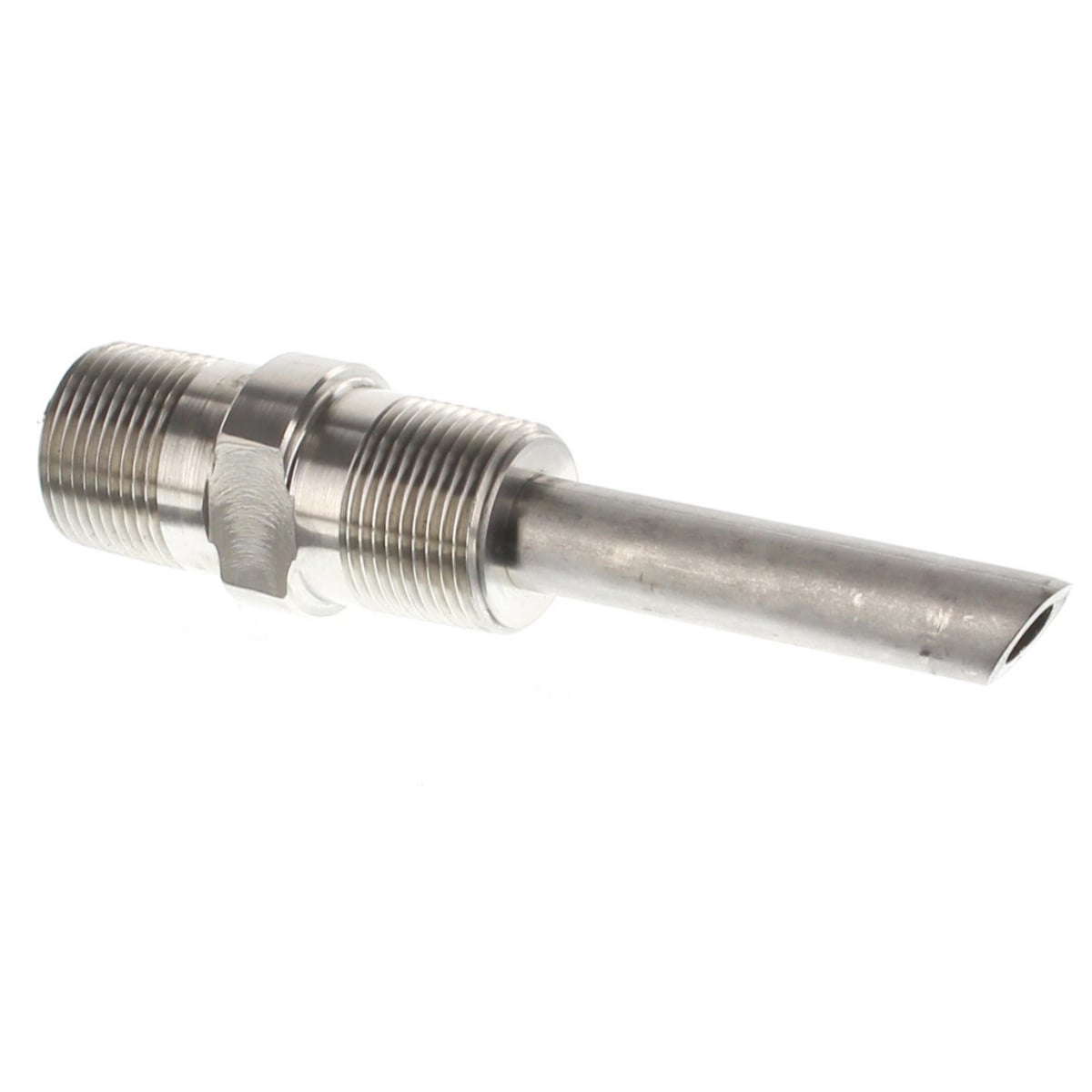

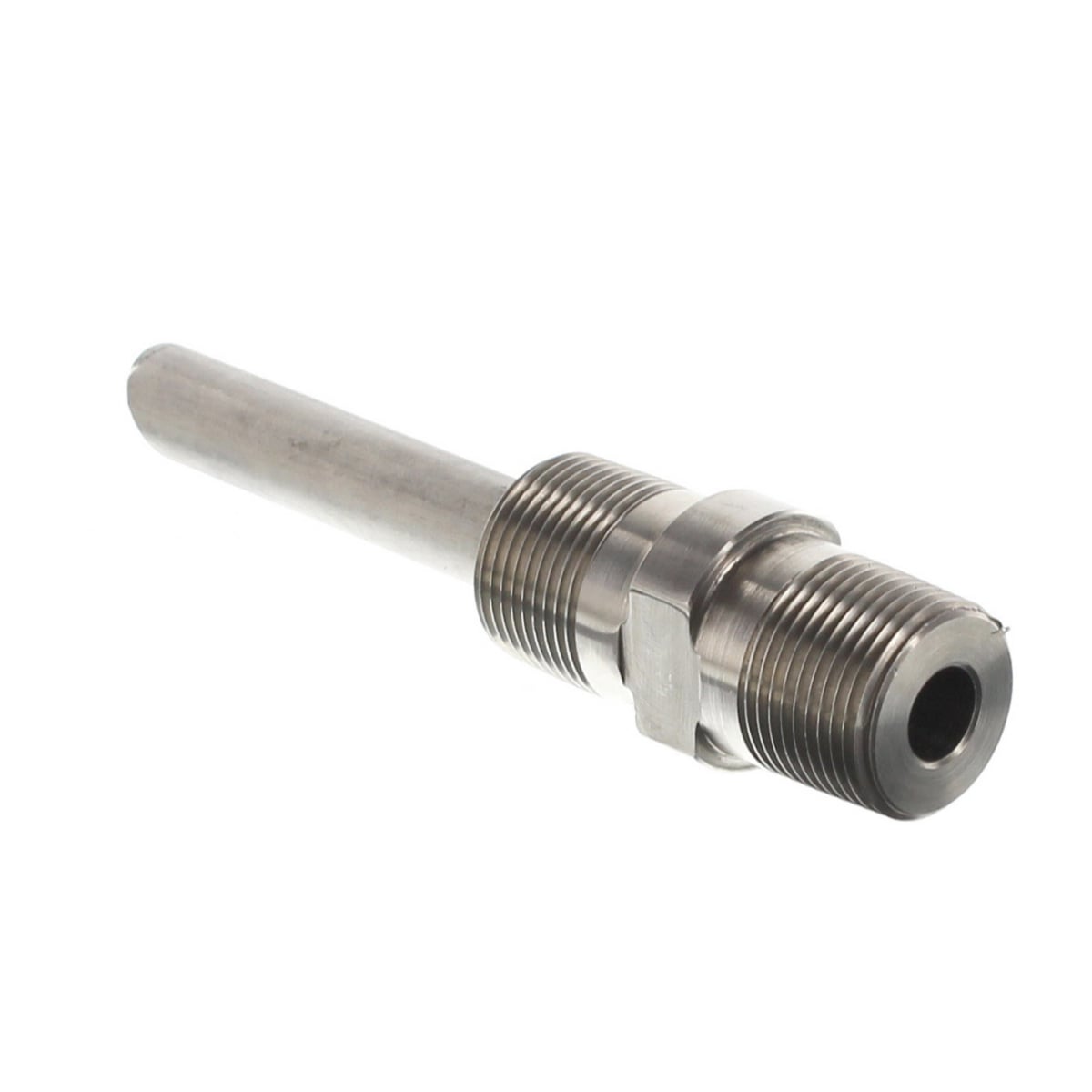

3/4" NPT Stainless Steel Boiler Chemical Injection Quill

3/4" NPT Stainless Steel Boiler Chemical Injection Quill

Regular price $227.99 USD
Regular price $259.99 USD Sale price $227.99 USD
Sale Sold out

3/4 inch Stainless Steel Injection Quill

What are Neptune Injection Quills?
Chemworld Injection Quills are high Pressure Chemworld Injection Quills are used to inject chemicals pumped by metering pumps into the turbulent flow zone of high pressure water or steam lines. They are perfect for injecting your boiler chemicals and amines to the steam header.

What are the features of the injection quill?
It may be used to 3,000 psi and comes with a spring loaded check valve option. These are available in 316SS on this page. For Other materials, please contact us directly..

What are the length of these quills?
Use the standard 2 3/4 inch standard Chemworld Injection Quill for lines smaller than 4" diameter, trim quill so chemical is released near center of line. Use as is for lines over 4" diameter. Install with a Telltale V-notch facing upstream so flow strikes angled face at end of quill for most rapid dispersal of injected chemical.

For maintenance ease, installation of an isolation valve, rated above line operating pressure, immediately behind the quill is recommended.
